DC Power Control Extension

From February 17 to 19, we will be closed for the Chinese New Year holiday, and all shipments will be suspended. All orders placed during this period will be processed and shipped in sequence starting on February 20.

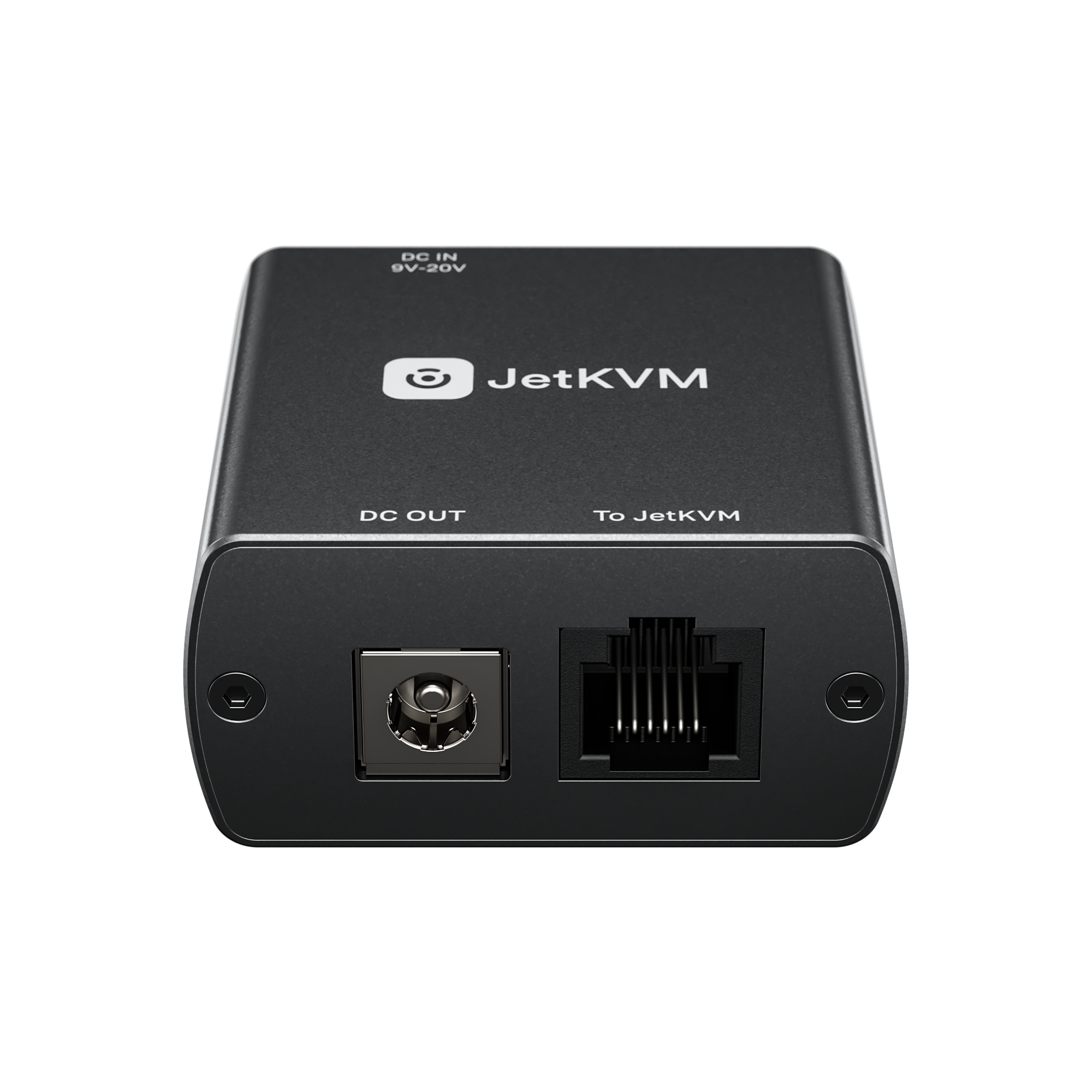

The DC Power Control extension enables power management for connected DC-powered devices, such as mini PCs or NAS units.

Remote Power Control for any DC device

Add remote power cycling to your JetKVM setup. Plug into the RJ-12 port, route your device's DC power through the module, and control power directly from the browser with the JetKVM.

It supports DC input ranging from 12 to 20 volts, and we're including adapters to support 5.5x2.1 mm connections as well.

The extension can also power the JetKVM itself through the RJ-12 connection, streamlining setup and reducing the need for additional power sources.

Pass-through Power

The built-in USB-C port provides 5V power directly through the RJ-12 cable, powering your JetKVM without the need for a separate USB connection.

This eliminates the need for constant USB power from the host computer or a USB splitter, simplifying your setup with a single-cable solution for both power and control.

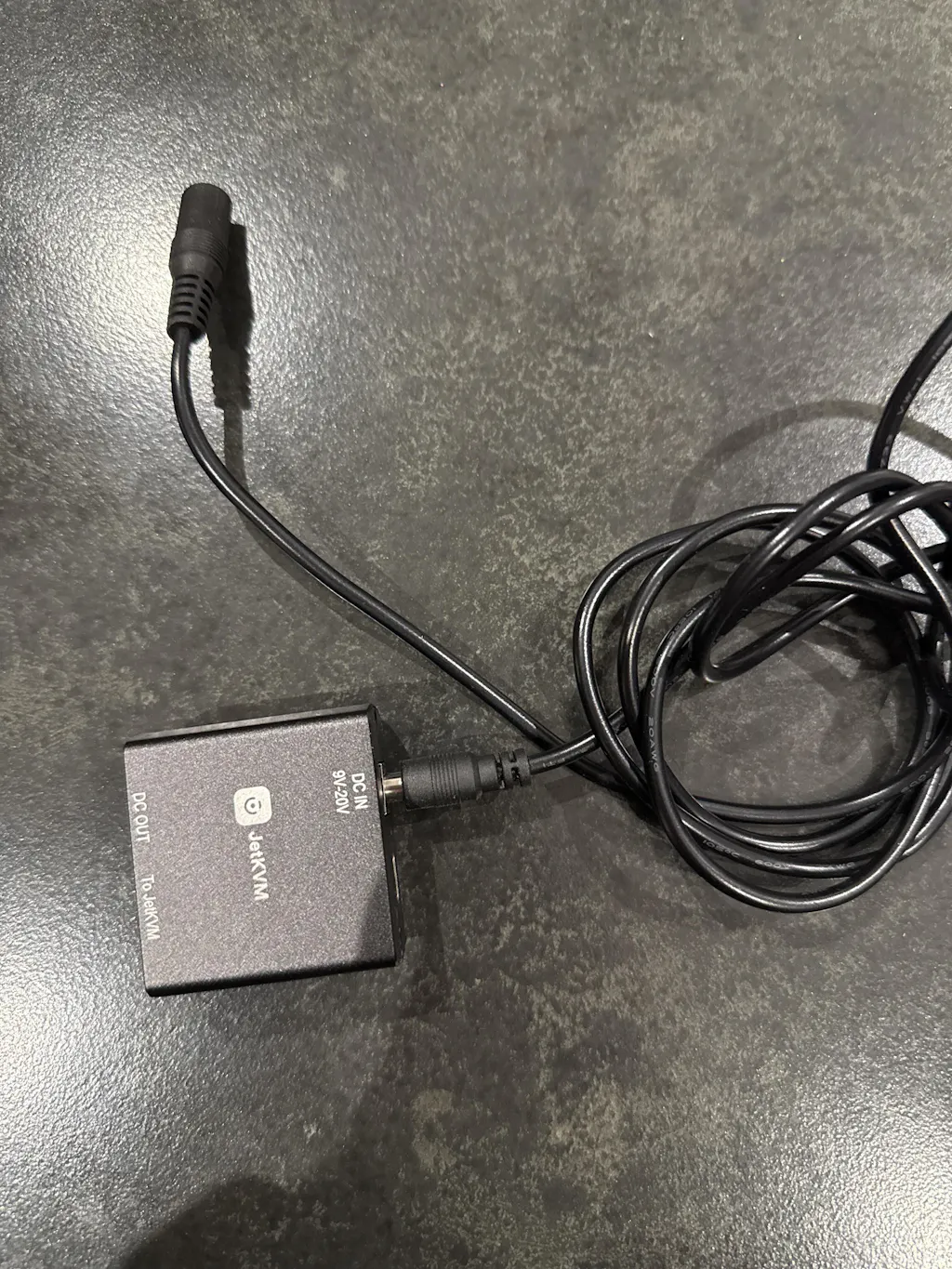

What's in the Box

• DC Extension
• RJ12 cable
• 1x 5.5/2.5 mm male to 5.5/2.5 mm male cable


More

• User Manual :https://jetkvm.com/docs/peripheral-devices/extension-port
