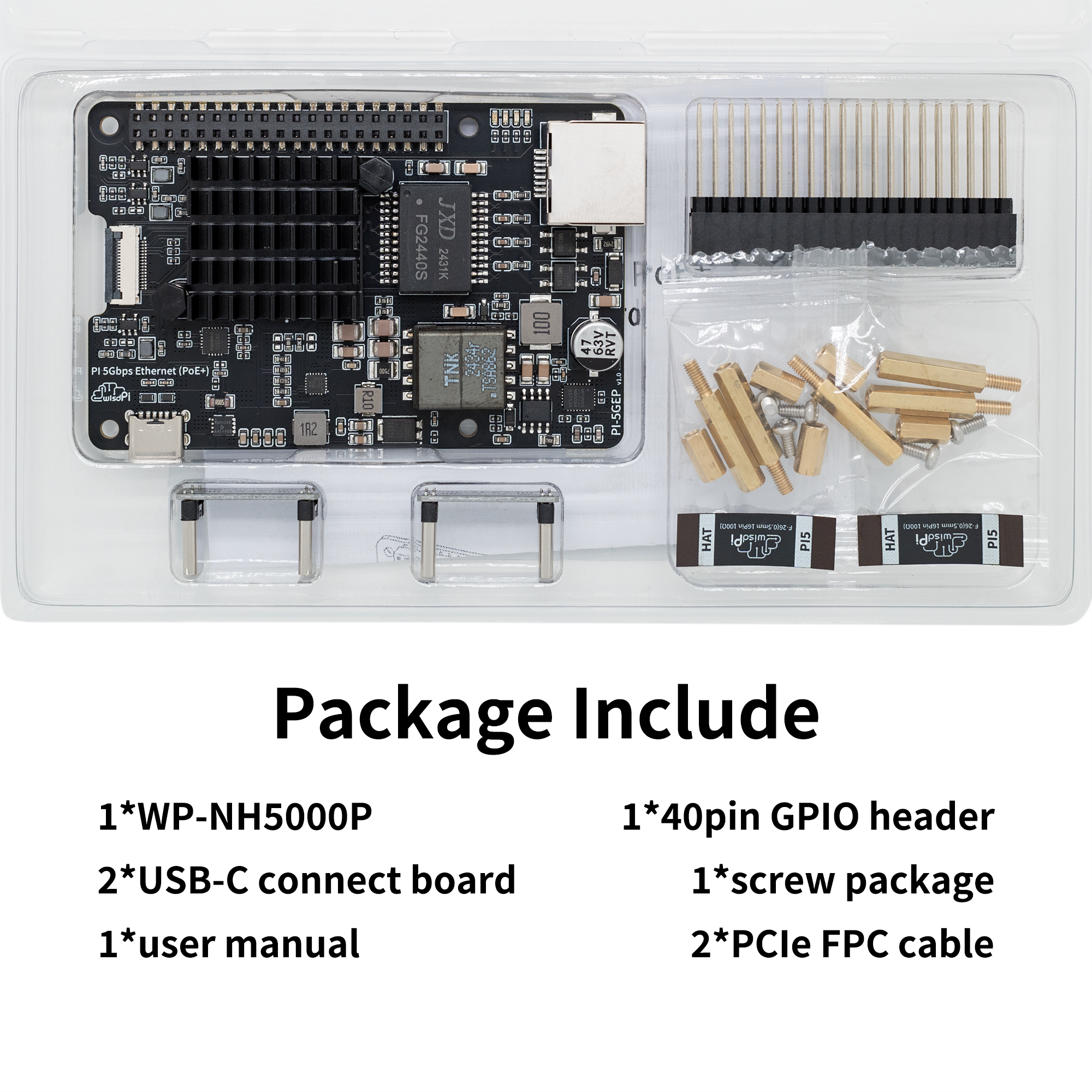

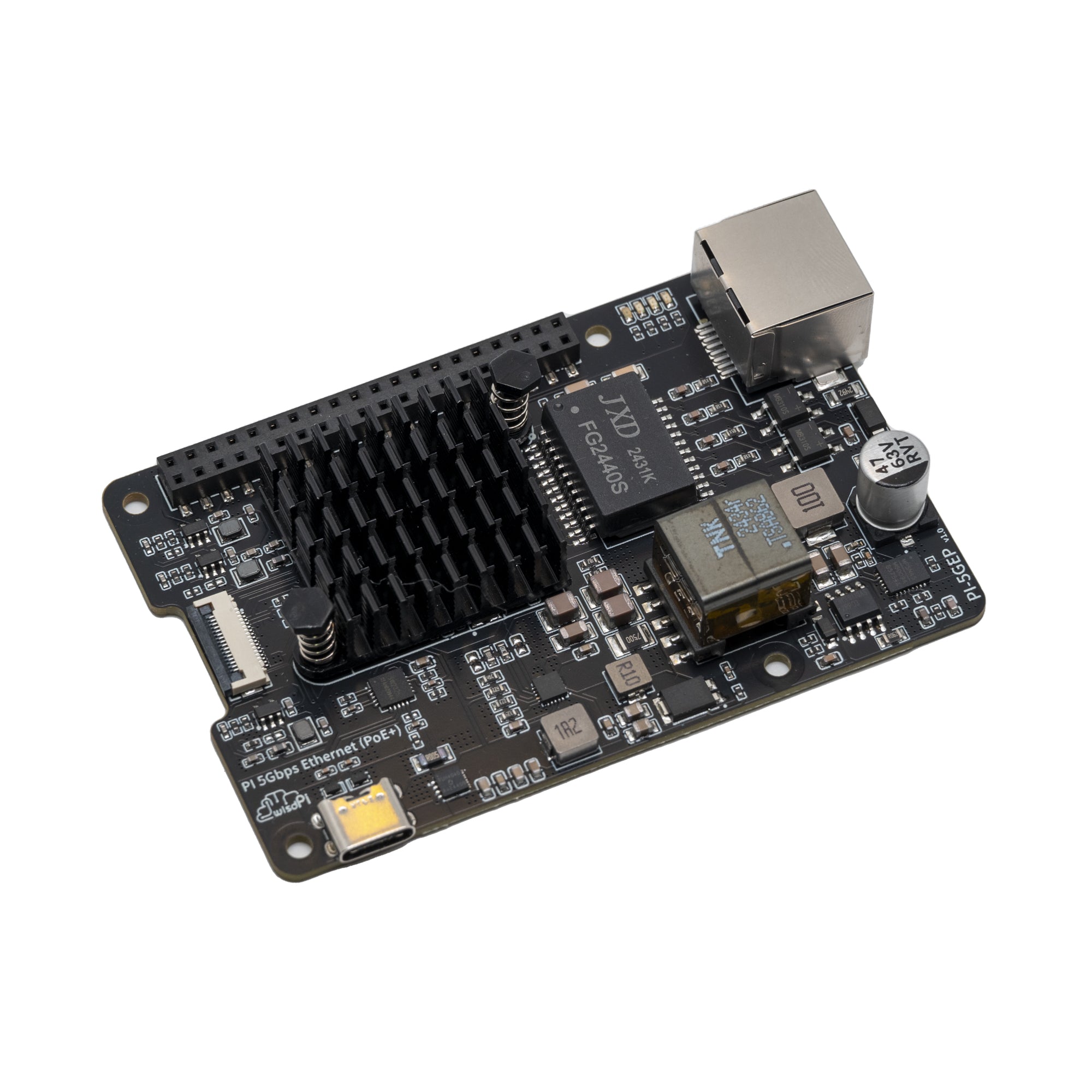

Raspberry Pi 5 5GbE PoE+ expansion board WP-NH5000P

Next-Gen 5GbE Expansion Board for Raspberry Pi 5 with PoE+ Support.

Features:

• Optimized for Raspberry Pi 5: WP-NH5000P is specifically designed to complement the Raspberry Pi 5, ensuring seamless integration and optimal performance.
• 5GbE Connectivity: Equipped with the Realtek RTL8126, this board offers 5 Gigabit Ethernet connectivity. Experience blazing-fast network speeds for seamless data transfer and low latency.
• Chip: Realtek RTL8126. All support 10/100/1000/2500/5000 Mbps links
• PoE+ Support: Simplify your setup with power and data delivered through a single cable.Shielding: Minimizes electromagnetic interference, enhancing stability and reliability with every connection
• Dedicated MAC Address Range: Each WP-NH5000P comes with a hardware MAC address from WisdPi's own IEEE-assigned pool.


Hardware

• Supports PCIe 3.0 x1
• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GlGA Lite (500M data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T TM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts

Driver

• https://github.com/wisdpi/wp-nh5000
